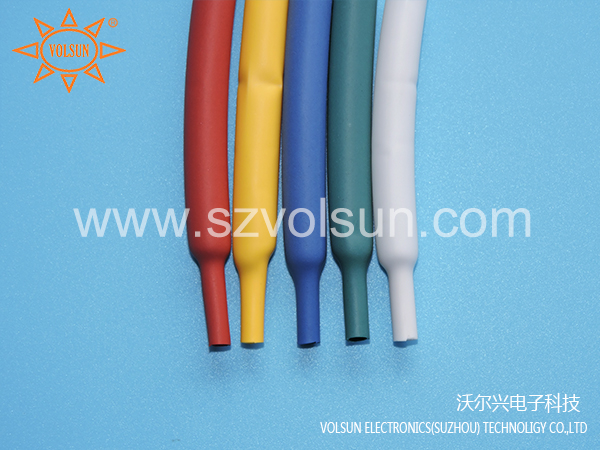

Colors Plastic Flexible Heat Shrink Cable Sleeve

FOB Reference Price:Get Latest Price
US $0.2-10 / Meters | 200 Meter/Meters Heat Shrink Cable Sleeve (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
cable sleeving 3mm
Model Number:
cable sleeving 3mm
Type:
Insulation Sleeving
Material:
PE
Application:
Low Voltage
Rated Voltage:
600V cable sleeving 3mm
Tensile Strength:
10.4Mpa 18mm tape
Color:
transparent cable sleeving 3mm
Min. shrink temperature:
70℃ cable sleeving 3mm
Min. full recovery temperature:
105℃ cable sleeving 3mm
Environmental standards:
RoHS , IPC/JEDEC-J-STD-709 Class H material
Tensile strength(MPa):
≥10.4
Elongation at break(%):
≥200
Longitudinal change:
-5%~+5%
Flammability:
VW-1 cable sleeving 3mm
Voltage Withstand:
UL224 cable sleeving 3mm
MOQ:
200M cable sleeving 3mm
Supply Ability
Supply Ability:
1000000000 Meter/Meters per Day Heat Shrink Cable Sleeve
Packaging & Delivery
Packaging Details
Standard Carton Box For Heat Shrink Cable Sleeve
Port
Shanghai
Lead Time :
2 weeks

Colors Plastic Flexible Heat Shrink Cable Sleeve





Description



Colors Plastic Flexible Heat Shrink Cable Sleeve ismade of radiation crosslinked polyolefin,

carries excellent physicochemical and electrical properties.  Typical applications include insulation of electrical connections or wire splices, rust and corrosion resistance for soldered joints or connections, mechanical and wiring harness protection and insulation. This product is widely used in automotive, agricultural and household machinery with bent tubing where mechanical protection is required, electronics, life consumables, decoration and lighting, communications, ship, aircraft manufacturing and other fields.



 Features



² Meets UL 224, CAN / CSA C22.2 NO198.1 -99

² Heat shrink ratio : 2:1   High quality Clear UL Stardand cable sleeving 3mm

² Halogen-free , low smoke generation , non-toxic , flexible, non flame retardant

² Min. shrink temperature:70 °C     High quality Clear UL Stardand cable sleeving 3mm

² Min. full recovery temperature :105 °C

² Continuous operating temperature : -55 °C ~ 105 °C    High quality Clear UL Stardand cable sleeving 3mm

² Environmental standards :RoHS , IPC/JEDEC-J-STD-709 Class H material

² Standard colors : transparent, black , white , red , yellow , green , blue and other four international                                           standard colors. More colors are available upon request.









Technical Data





Properties

Typical Data

Test Method

Tensile strength(MPa)

10.4

ASTM D2671

Elongation at break(%)

200

ASTM D2671

Longitudinal change

-5%~+5%

ASTM D 2671

Flammability

VW-1

ASTM D 2671 C

Voltage Withstand(Rated voltage, 600V)

2500V,1min, without breakdown

UL224

Volume resistivity(Ω cm)

≥1014Ω.cm

IEC 60093







Structure

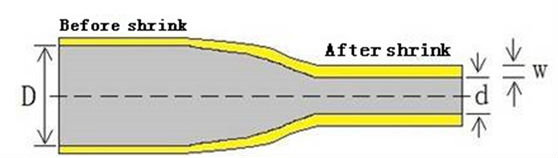

Dimension
