Busbar Insulation Black Flexible Piece/Continuous 24KV Heat Shrink Tube

FOB Reference Price:Get Latest Price
US $0.06-2.9 / Meters | 50 Meter/Meters 24KV Heat Shrink Tube (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
VOLSUN
Model Number:
MPRS-H
Type:
Insulation Sleeving
Material:
PE
Application:
High Voltage
Rated Voltage:
36KV; 24KV Heat Shrink Tube
Tensile Strength:
8MPa; 24KV Heat Shrink Tube
Product:
24KV Heat Shrink Tube
Heat Shrink Ratio:
2.5:1, 2:1
Flammability:
VW-1; 24KV Heat Shrink Tube
Operating temp:
55°C~125°C
Sample:
Free for existing sample
Certification:
RoHS
Color:
Black, red, green, yellow or custom made
Min. shrink temperature:
≥84°C; 24KV Heat Shrink Tube
Min. full recovery temperature:
≥120°C; 24KV Heat Shrink Tube
Supply Ability
Supply Ability:
10000000 Meter/Meters per Day 24KV Heat Shrink Tube
Packaging & Delivery
Packaging Details
Standard Export Packing, 24KV Heat Shrink Tube
Port
Shanghai Port
Lead Time :
Within 1-2 weeks, 24KV Heat Shrink Tube
daogou2
Heat Shrink Tube Heat Shrink Tube Overhead Line Cover Overhead Line Cover Fiberglass Sleeve Fiberglass Sleeve Cable Marker Label Cable Marker Label Cold Shrink Tube Cold Shrink Tube

24KV Heat Shrink Tube

Description

Description

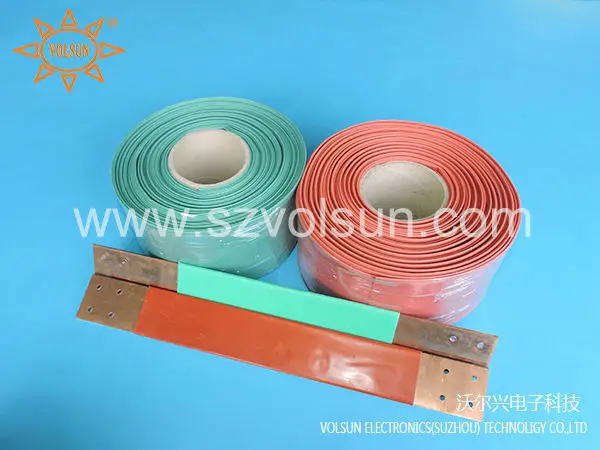

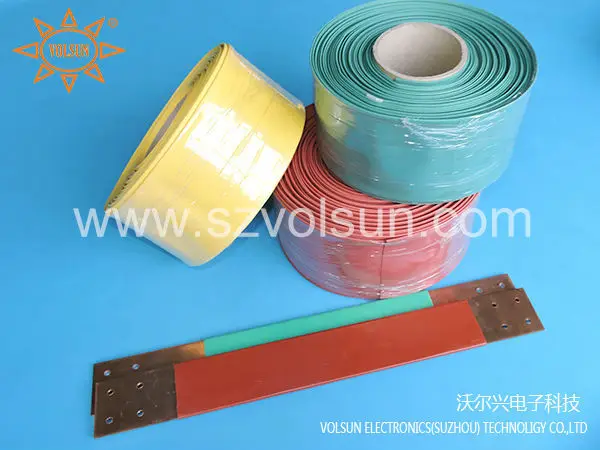

24KV Heat Shrink Tube , a kind of continuous tube shape material made of radiation cross-linked polyolefin, carry excellent insulating peformance. 24KV Heat Shrink Tube , its typical applications include insulation of electrical bus bar rated up to 36KV or higher voltage ratings, rectangular, square and round bus bars, inline bolted connections of rectangular bus bars, copper or aluminum bus bars, metal-clad switchgear, metal-enclosed bus bar, substation switchgear etc.



24KV Heat Shrink Tube



 10KV Heat Shrink TubeVolsun heat shrink sleeve for busbar (5)





Features

Features

Meets: GB/T 1059-2007



Shrink ratio:2:1, 2.5:1, 3:1



Tracking resistant, low smoke emitting, high strength, flexible, flame retardant



Min. shrink temperature:≥84°C



Min. full recovery temperature:≥120°



Continuous operating temperature:-55°C~125°C



RoHS compliant



Standard colors: Red, yellow, green and other colors available on your request

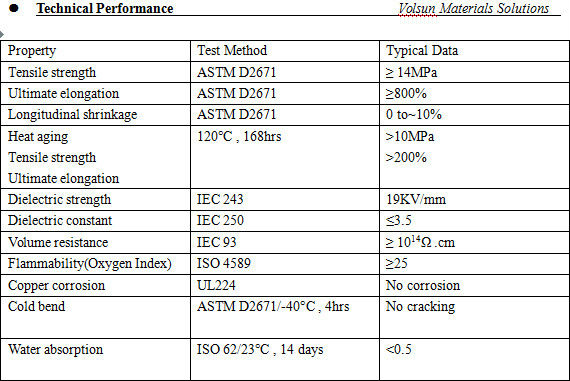

Peformance



10KV Heat Shrink Tube

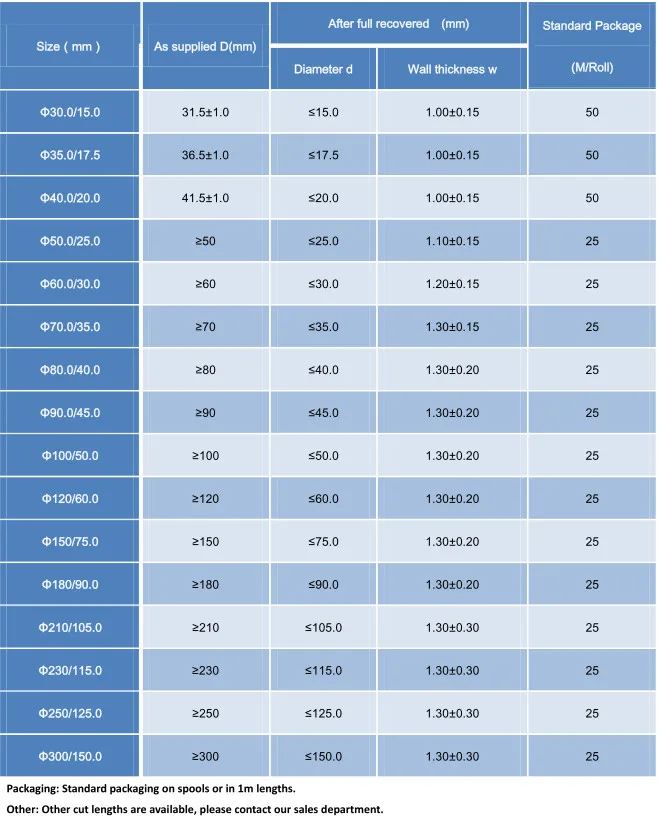

Dimension


Structure

10KV Heat Shrink Tube



Dimension



10KV Heat Shrink Tube

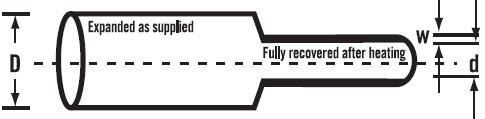

Notes: D* =Inner diameter as supplied d*=Inner diameter after recovered  w*=Wall thickness after fully recovered

Standard Colors: Red, Yellow, Green

Special colors: Black, Blue, Grey etc

Packaging: Standard packaging on spools or in 1m lengths.

Other: Other cut lengths are available, please contact our sales department.
