Plastic Wiring Harness Insulation Heat Shrink Thin Wall Tube

FOB Reference Price:Get Latest Price
US $0.6-10 / Meters | 100 Meter/Meters Thin Wall Tube (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Volsun
Model Number:
DBRS-125H(2X)(3X)
Type:
Heat Shrinkable
Material:
PE
Item::
Thin Wall Tube
Min.shrink temp:
84degree
Rated temp:
120degree
Shrink ratio:
2:1 3:1
Color:
Black More colors are available upon request
Usage:
Insulation protection
Sample:
Free Thin Wall Tube
Certification:
SGS&ROHS Thin Wall Tube
Property:
Excellent physicochemical
Delivery:
1-2 Weeks
Supply Ability
Supply Ability:
1000000 Meter/Meters per Day Thin Wall Tube
Packaging & Delivery
Packaging Details
Thin Wall Tube
Standard Exporting Package
Port
Shanghai
Lead Time :
Shipped in 14 days after payment

 Plastic Wiring Harness Insulation Heat Shrink Thin Wall Tube





Halogen-free fire retardant Thin Wall Tube , made of radiation cross linked polyolefin,

is designed with excellent physicochemical and electrical properties.Typical applications include insulation

of electrical connections or wire splices, rust and corrosion resistance for the soldered joints or connections,

mechanical and wiring harness protection and insulation in electronics, communications, automotive, marine, aircraft manufacturing and other fields.





Picture show











Features


1.Meets UL 224, CAN / CSA C22.2 NO198.1 -99
2.Heat shrink ratio: 2:1 3:1
3.
Halogen-free , low-smoke generations , non-toxic , flexible , fire retardant
4.Min. shrink temperature : 84 °C

5.Min. full recovery temperature : 120
°C
6.Continuous operating temperature : -55
°C ~ 125 °C

7.
Environmental standards : RoHS , IPC/JEDEC-J-STD-709 Class H material
8.Standard Colors: black, white, red, yellow, green, blue and other four international standard colors. More colors are available upon request.







Technical Data





Properties

Typical Data

Test Method

Tensile strength

≥10.4MPa

ASTM D 2671

Elongation

≥200%

ASTM D 2671

Tensile strength after heat

≥7.3MPa

158℃×168h

Elongation after aging

≥100%

158℃×168h

Longitudinal change

-5%~+5%

ASTM D 2671

Flammability

VW-1

ASTM D 2671 C

Voltage withstand

 (Rated voltage, 600V)

2500V,1min without breakdown

UL 224

Heat shock

No track ,no drippings

UL 224,250℃×4h

Dielectric strength

≥15kV/mm

ASTM D 149

Volume resistivity

≥1014Ω.cm

IEC 60093











Dimension

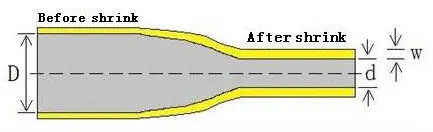

Structure

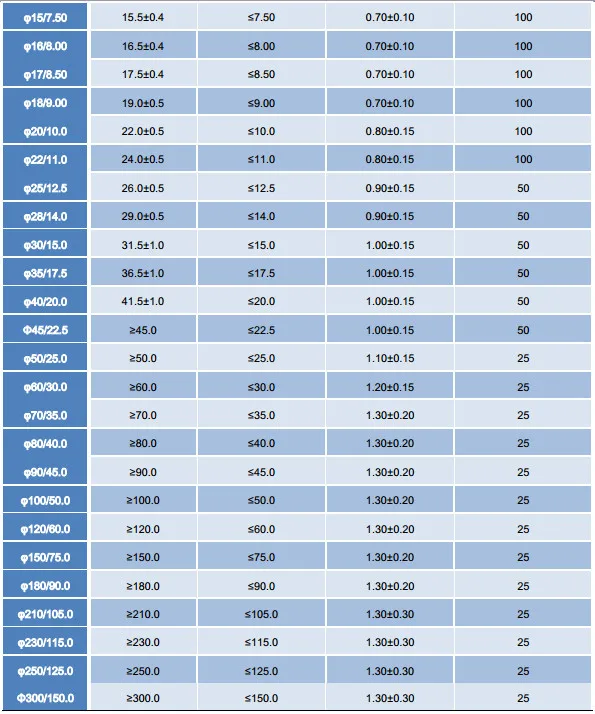

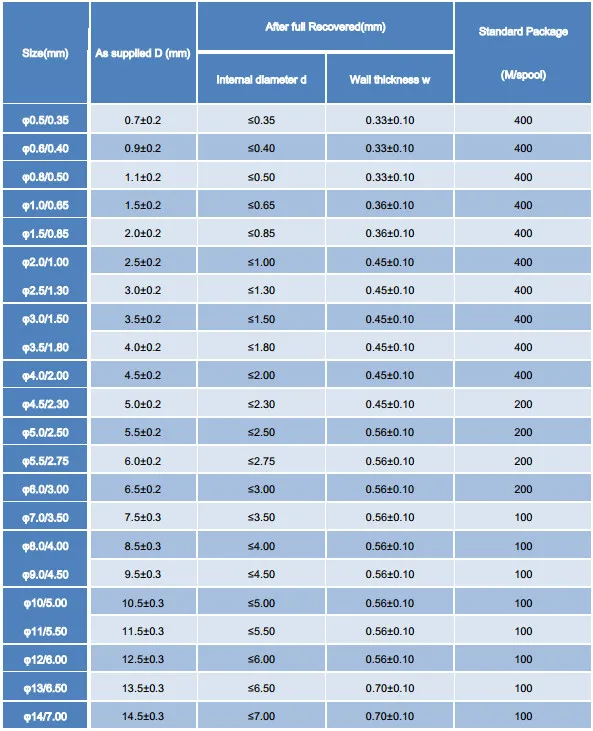

Dimension(2:1)

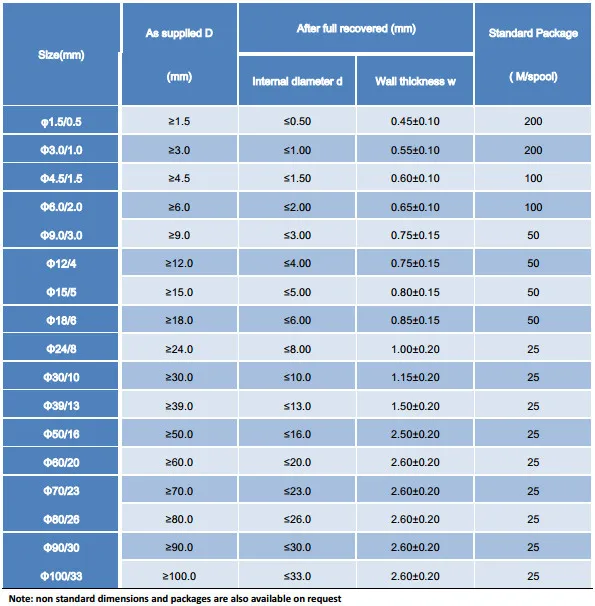

Dimension(3:1)
