High Flame Retardant Polyplefin Copper Heat Shrink Busbar Sleeve

FOB Reference Price:Get Latest Price
US $0.9-5.9 / Meters | 50 Meter/Meters epoxy insulator (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
VOLSUN
Model Number:
MPRS-L
Type:
Insulation Sleeving
Material:
PE
Application:
High Voltage
Rated Voltage:
up to 36KV
Tensile Strength:
8MPa
Product:
Heat Shrink Busbar Sleeve
Heat Shrink Ratio:
2:1, 2.5:1, 3:1
Flammability:
VW-1
Operating temp:
55°C~125°C
Sample:
Free for existing sample
Certification:
RoHS
Color:
Black, red, green, yellow or custom made
Min. shrink temperature:
≥84°C Heat Shrink Busbar Sleeve
Min. full recovery temperature:
≥120°C Heat Shrink Busbar Sleeve
Standard or Nonstandard:
Standard
Supply Ability
Supply Ability:
10000000 Meter/Meters per Day epoxy insulator
Packaging & Delivery
Packaging Details
Standard Export Packing
Port
SHANGHAI
Lead Time :
Within 1-2 weeks

  High Flame Retardant Polyplefin Copper Heat Shrink Busbar Sleeve

Product Description

Description

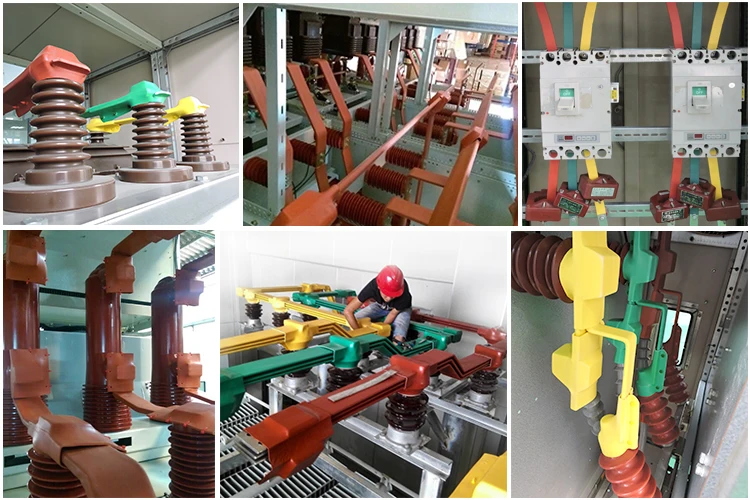

Heat shrink busbar sleeve, a kind of continuous tube shape material made of radiation cross-linked polyolefin, carry excellent insulating performance. Typical applications include insulation of electrical bus bar rated up to 20KV or higher voltage ratings, rectangular, square and round bus bars, inline bolted connections of rectangular bus bars, copper or aluminum bus bars, metal-clad switchgear, metal-enclosed bus bar, substation switchgear etc.

Features

Features

♦Shrink ratio: 2:1
♦Tracking resistant, low smoke emitting, high strength, flexible, flame retardant Min. shrink temperature: ≥84°C

♦Min. full recovery temperature: ≥120°C

♦Continuous operating temperature: -55°C~125°C

♦RoHS compliant
♦Standard Package :Black, White, Red ,Yellow, Green ,Blue. More colors are available upon request.

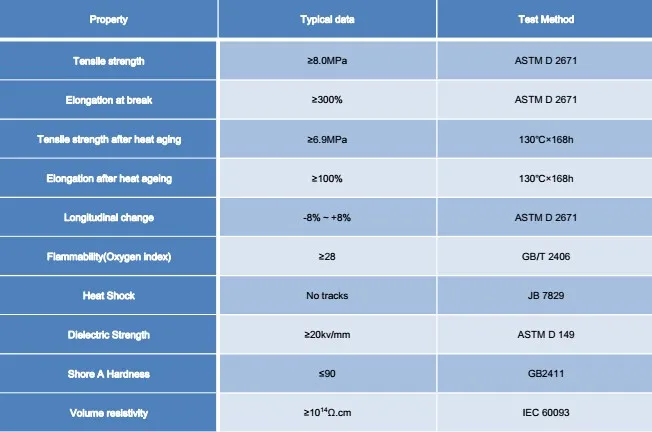

Technical Performance

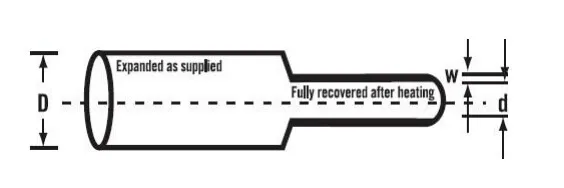

Dimensions



Structure

Dimensions
